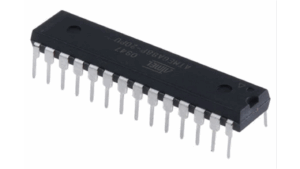

The phrase readout Microcontroller ATmega88P flash program evokes a complex field at the intersection of embedded engineering, firmware preservation, and security research. The ATmega88P, an AVR family MCU once produced by Atmel and now supported by Microchip, is a compact 8-bit microcontroller with on-chip flash, EEPROM, SRAM, and a set of peripherals (timers, ADC, SPI, I²C/Two-Wire, USART). Its modest flash footprint and flexible I/O have made it popular across hobbyist boards, consumer devices, industrial controllers, and small-scale instrumentation.

When people talk about reading out an ATmega88P’s stored firmware, they often use verbs such as crack / break /attack /decode /decapsulate /hack /decrypt /clone /copy /recover /replicate /duplicate /restore /reverse engineering. These words capture motivations that range from legitimate — preserving legacy source code or recovering a lost binary — to illicit — unauthorized copying of protected code. It’s important to separate lawful, ethical activity from actions that would violate copyrights, device licenses, or local law.

Extract Chip ATmega88P Program from flash memory after unlock MCU ATmega88P‘s security fuse bit through reverse engineering microcontroller technique;

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After four clock cycles the program vector address for the actual interrupt handling routine is executed. During this four clock cycle period, the Program Counter is pushed onto the Stack.

The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by four clock cycles.

This increase comes in addition to the start-up time from the selected sleep mode. A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (two bytes) is popped back from the Stack, the Stack Pointer is incremented by two, and the I-bit in SREG is set before remove microcontroller copy protection.

The ATmega48/88/168 contains 4/8/16K bytes On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16 or 32 bits wide, the Flash is organized as 2/4/8K x 16. For software security, the Flash Program memory space is divided into two sections, Boot Loader Section and Application Program Section in ATmega88 and ATmega168.

ATmega48 does not have separate Boot Loader and Application Program sections, and the SPM instruction can be executed from the entire Flash. The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATmega48/88/168 Program Counter (PC) is 11/12/13 bits wide, thus addressing the 2/4/8K program memory locations. The operation of Boot Program section and associated Boot Lock bits when read mcu atmega48v program.

The ATmega48/88/168 is a complex microcontroller with more peripheral units than can be supported within the 64 locations reserved in the Opcode for the IN and OUT instructions. For the Extended I/O space from 0x60 – 0xFF in SRAM, only the ST/STS/STD and LD/LDS/LDD instructions can be used.

The lower 768/1280/1280 data memory locations address both the Register File, the I/O memory, Extended I/O memory, and the internal data SRAM. The first 32 locations address the Register File, the next 64 location the standard I/O memory, then 160 locations of Extended I/O memory, and the next 512/1024/1024 locations address the internal data SRAM.

The five different addressing modes for the data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register File, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space. The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-register. When using register indirect addressing modes with automatic pre-decrement and post-increment, the address registers X, Y, and Z are decremented or incremented. The 32 general purpose working registers, 64 I/O Registers, 160 Extended I/O Registers, and the 512/1024/1024 bytes of internal data SRAM in the ATmega48/88/168.

Where ATmega88P is used

The ATmega88P commonly appears in:

• Consumer electronics and small appliances

• Instrumentation and data loggers

• Hobbyist and educational platforms

• Low-volume industrial controllers and communication modules

In these deployments the MCU often holds critical program logic, calibration data, or proprietary communication protocols—assets manufacturers may protect with lock-bits and security measures.

Security posture and practical difficulties

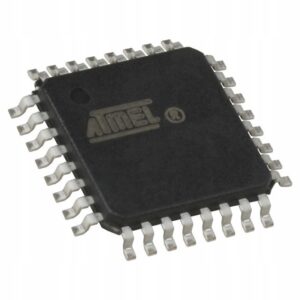

Manufacturers can enable secured, protected, encrypted, or locked states to prevent casual readout of the flash memory or EEPROM. From a non-procedural viewpoint, the main categories of challenges are:

• Logical protections: fuse or lock-bit settings that disable standard debug or programming interfaces so the MCU refuses normal read commands.

• Encryption and obfuscation: firmware stored in a format or run within checks that complicate direct interpretation.

• Physical constraints: tiny package sizes, multilayer PCBs, and lack of exposed debug pads that make physical access difficult.

• Anti-tamper and resilience: some devices include tamper detection or self-destruct behavior to guard sensitive data.

• Risk of permanent damage: invasive analysis can destroy the chip or the board, eliminating any chance of lawful recovery.

All of these increase the expertise, time, and specialized equipment required to obtain a usable firmware dump, and they raise legal and ethical hurdles.

Responsible alternatives and best practices

If the goal is legitimate — archival, repair, or interoperability — consider these lawful routes instead of unauthorized reverse engineering:

• Contact the original manufacturer for source or firmware under an agreement.

• Use official update or recovery procedures published in datasheets and user guides.

• Seek written authorization from the device owner to engage a trusted, professional service.

• Where permitted, perform non-invasive analysis or binary-level research on open hardware or your own devices.

Readout Microcontroller ATmega88P flash program describes a technically demanding area that combines knowledge of MCU architecture, embedded systems, and security. While the technical vocabulary (clone/copy/reverse engineering/decode) is widely used, any attempt to access protected firmware must be approached with legal authorization, ethical clarity, and awareness of the substantial practical difficulties involved in working with secured microcontroller memories.
