The ability to readout Microcontroller ATmega168A firmware from a secured, locked, or protected device is often needed for legitimate recovery, long-life support, or reverse engineering efforts — but it sits at the boundary between engineering and legal/ethical constraints. This article surveys the technology and challenges involved in extracting a binary/heximal archive from an ATmega168A MCU, discusses where the chip is commonly deployed, and explains why recovering a firmware file from a protected device is difficult without delving into actionable attack procedures.

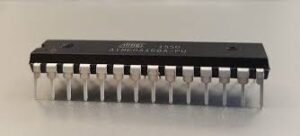

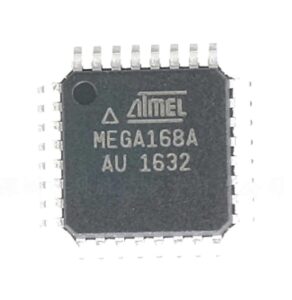

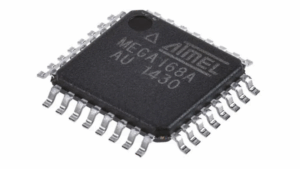

The ATmega168A is a compact, low-power 8-bit AVR microcontroller with up to 16 KB of in-system programmable Flash, internal EEPROM and SRAM, and a rich peripheral set (ADC, SPI, I²C, timers, UART) that makes it ubiquitous in small embedded systems and hobbyist platforms such as Arduino variants and many IoT and consumer products. These attributes — predictable instruction set, small memory footprint, and broad ecosystem — are why designers choose the ATmega168A for instrumentation, consumer electronics, sensor nodes, and simple automotive/industrial controls.
Manufacturers protect valuable intellectual property and calibration data by setting lock bits and fuse configurations that prevent ordinary readout of the program and EEPROM. The ATmega family supports lock/boot sections and programming-protection options specifically intended to stop casual copying or cloning of the program memory.
High-level categories of methods discussed in research and literature to access secured MCU contents include non-destructive and invasive techniques — from protocol or debug interface analysis to physical die inspection. These methods are typically framed as attacks (e.g., glitching, side-channel observation, decapsulation) in academic and security circles; they are technically sophisticated and require specialized equipment, and therefore carry significant technical, legal, and ethical risk. I will not provide step-by-step instructions here, but it’s important to note that these techniques range from passive observation to fully invasive chip-level work — each with increasing chance of permanent damage to the target chip and to the integrity of the firmware archive.
Extract Microcontroller ATmega168A Eeprom content needs to break mcu atmega168a security fuse bit and then unlock processor atmega168a flash and eeprom memory;
The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate program vector in the program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt Enable bit in the Status Register in order to enable the interrupt.
Depending on the Program Counter value, interrupts may be automatically disabled when Boot Lock bits BLB02 or BLB12 are programmed. This feature improves software security. See the section ”Memory Programming” on page 285 for details.
The lowest addresses in the program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in ”Interrupts” on page 56. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request.
- The Interrupt Vectors can be moved to the start of the Boot Flash section by setting the IVSEL bit in the MCU Control Register (MCUCR). Refer to ”Interrupts” on page 56 for more information. The Reset Vector can also be moved to the start of the Boot Flash section by programming the BOOTRST Fuse, see ”Boot Loader Support – Read-While-Write Self-Programming, ATmega88 and ATmega168” on page 269.
When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.
There are basically two types of interrupts. The first type is triggered by an event that sets the Interrupt Flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding Interrupt Flag.
Interrupt Flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared when extracting mcu atmega162 flash firmware code, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software.
Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.
The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Interrupt Flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.
When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served. Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be handled by software.
When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction when extracting ic atmega8535 controller heximal code, even if it occurs simultaneously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence.
Practical difficulties unique to the ATmega168A include its small package and close layout that complicate microprobing, limited on-chip debug channels on many commercial boards, and the presence of boot lock bits and fuse settings that can render the flash logically inaccessible without altering state. Compared with larger, more complex MCUs, the ATmega168A’s compactness both simplifies reverse engineering (fewer bytes to analyze) and complicates physical access (tighter geometry).
When a legal, ethical recovery is required — for example, restoring legacy products or migrating firmware for maintenance — best practice is to seek the vendor’s cooperation, use archival backups, or engage accredited specialists who operate under clear legal authorization. Attempting to crack, break, or hack secured firmware without permission can violate laws and destroy the very data you hope to recover.
In summary, attempting to readout Microcontroller ATmega168A firmware from a secured device is a complex, high-skill activity. While the ATmega168A’s modest memory size and broad deployment make it a common target for legitimate recovery and reverse engineering, its protection mechanisms, compact die geometry, and the legal/ethical constraints around attacking secured devices make successful, non-destructive extraction challenging.
