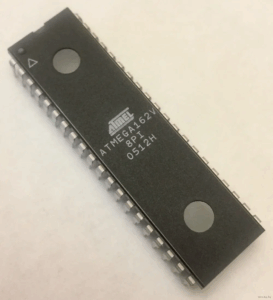

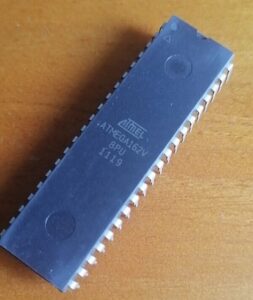

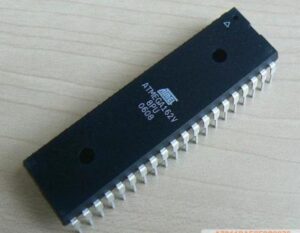

The demand to extract microcontroller ATMEGA162V code often arises in industries where legacy systems, proprietary devices, or locked embedded solutions must be analyzed, repaired, or redeveloped. The ATMEGA162V is an AVR-based 8-bit microcontroller developed by Atmel (now Microchip), designed for low-power, high-performance applications. With 16KB of flash memory, 512B EEPROM, 1KB SRAM, and support for multiple USART channels, it became a popular choice in industrial automation, consumer electronics, automotive modules, and medical devices. Its widespread adoption means that engineers, repair specialists, and researchers sometimes need to recover firmware, replicate existing solutions, or perform reverse engineering when the original source code is unavailable.

Extract Microcontroller ATMEGA162V Code in the format of binary or heximal from unlocked status MCU ATmega162V by crack MCU protective mechanism and disable the security fuse bit;

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers when Extract MCU Attiny13v heximal.

The ATmega162 provides the following features: 16K bytes of In-System Programmable Flash with Read-While-Write capabilities, 512 bytes EEPROM, 1K bytes SRAM, an external memory interface, 35 general purpose I/O lines, 32 general purpose working registers, a JTAG interface for Boundary-scan, On-chip Debugging support and programming, four flexible Timer/Counters with compare modes, internal and external interrupts, two serial programmable USARTs, a programmable Watchdog Timer with Internal Oscillator, an SPI serial port, and five software selectable power saving modes.

Products built around the ATMEGA162V often run customized programs that control unique functions, such as data logging, motor control, or communication protocols. Over time, these systems may require duplication, restoration, or functional updates, but without access to the original developer’s archive or file, the only option is to dump the locked binary directly from the MCU. Extracting this firmware can preserve critical knowledge and allow engineers to replicate or duplicate designs in order to maintain compatibility with existing hardware.

Security Features and Difficulties

The ATMEGA162V includes multiple levels of flash protection, with secured lock bits that prevent straightforward reading of the internal memory. When these protections are enabled, normal programmers cannot access the firmware, making the code effectively encrypted and locked to outsiders. Attempting to break or crack these protections is not a trivial task.

Several technical challenges are encountered:

• Decapsulation of the chip to physically access the silicon die without destroying functional pathways.

• Fault injection attacks, including voltage and clock glitches, aimed at tricking the chip into revealing protected data.

• Side-channel analysis, monitoring electromagnetic emissions or power consumption to decode internal processes.

• Advanced reverse engineering of security fuse behavior to find pathways around protection.

Unlike simpler devices, the ATMEGA162V’s integration of peripherals and its robust bootloader configuration mean that brute-force approaches are ineffective. Specialized equipment and highly skilled expertise are required to hack through the defenses without damaging the MCU permanently.

The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or Hardware Reset when Extract mcu data.

In Power-save mode, the Asynchronous Timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption. In Extended Standby mode, both the main Oscillator and the Asynchronous Timer continue to run.

The device is manufactured using Atmel’s high density non-volatile memory technology. The On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip Boot Program running on the AVR core. The Boot Program can use any interface to download the Application Program in the Application Flash memory after Extract mcu attiny15l code.

Software in the Boot Flash section will continue to run while the Application Flash section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel ATmega162 is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

The ATmega162 AVR is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, In-Circuit Emulators, and evaluation kits. The ATmega162 is a highly complex microcontroller where the number of I/O locations supersedes the 64 I/O locations reserved in the AVR instruction set. To ensure backward compatibility with the ATmega161, all I/O locations present in ATmega161 have the same locations in ATmega162 when read mcu attiny26l program.

Some additional I/O locations are added in an Extended I/O space starting from 0x60 to 0xFF, (i.e., in the ATmega162 internal RAM space). These locations can be reached by using LD/LDS/LDD and ST/STS/STD instructions only, not by using IN and OUT instructions. The relocation of the internal RAM space may still be a problem for ATmega161 users. Also, the increased number of Interrupt Vectors might be a problem if the code uses absolute addresses.

The ATMEGA162V is often found in:

• Industrial controllers managing sensors and actuators.

• Automotive modules for dashboard interfaces and communication gateways.

• Medical electronics, where reliable low-power processing is critical.

• Consumer appliances, such as smart home controllers and personal devices.

In each of these cases, losing access to firmware can cripple maintenance efforts or prevent redevelopment. The ability to recover, restore, or copy a working binary ensures product continuity, even when original documentation or support is no longer available.

To extract microcontroller ATMEGA162V code is to engage in one of the most technically demanding areas of embedded engineering. It requires sophisticated methods to decrypt, dump, and recover the internal program from a highly protected and locked device. Unlike general programming tasks, this process involves precise attacks against the chip’s defenses, specialized tools, and deep microelectronic knowledge. Success allows engineers to preserve valuable archives, replicate lost designs, and sustain the lifecycle of products built around this versatile chip.

To solve these problems, an ATmega161 compatibility mode can be selected by programming the fuse M161C. In this mode, none of the functions in the Extended I/O space are in use, so the internal RAM is located as in ATmega161. Also, the Extended Interrupt Vectors are removed. The ATmega162 is 100% pin compatible with ATmega161, and can replace the ATmega161 on current Printed Circuit Boards. However, the location of Fuse bits and the electrical characteristics differs between the two devices.
