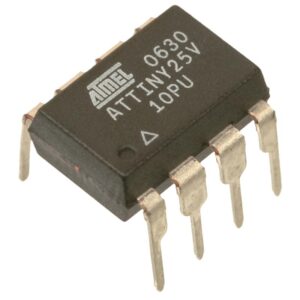

Read Chip ATTINY25V Software

We can Read Chip ATTINY25V Software, please view the Chip ATTINY25V features for your reference:

Port B is a 6-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated when Read Chip.

The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running. Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset after Read Chip, even if the clock is not running. The minimum pulse length is given in Table 23-3 on page 170. Shorter pulses are not guaranteed to generate a reset.

    1. Some of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI before Read Chip
      1. I/O Registers within the address range 0x00 – 0x1F are directly bit-accessible using the SBI and CBI instructions. In these
        1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written when Read Chip. registers, the value of single bits can be checked by using the SBIS and SBIC instructions. instructions will only operation the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only if Read Chip.
    1. PLL not locking

    When at frequencies below 6.0 MHz, the PLL will not lock

    Problem fix / Workaround

    When using the PLL, run at 6.0 MHz or higher before Read Chip.



    1. EEPROM read from application code does not work in Lock Bit Mode 3

    When the Memory Lock Bits LB2 and LB1 are programmed to mode 3, EEPROM read does not work from the application code.

    Problem Fix/Work around when Read Chip

    Do not set Lock Bit Protection Mode 3 when the application code needs to read from EEPROM.



    1. Reading EEPROM at low frequency may not work for frequencies below 900 kHz

    Reading data from the EEPROM at low internal clock frequency may result in wrong data read.

    Problem Fix/Workaround after Read Chip

    Avoid using the EEPROM at clock frequency below 900kHz.



    1. Timer Counter 1 PWM output generation on OC1B – XOC1B does not work correctly

    Timer Counter1 PWM output OC1B-XOC1B does not work correctly. Only in the case when the control bits, COM1B1 and COM1B0 are in the same mode as COM1A1 and COM1A0, respectively, the OC1B-XOC1B output works correctly before Read Chip.

    Problem Fix/Work around

    The only workaround is to use same control setting on COM1A(1:0) and COM1B(1:0) control bits, see table 14-4 in the data sheet. The problem has been fixed for Tiny45 rev D when Read Chip.
