In the realm of embedded systems and microcontroller reverse engineering, the need to extract microcontroller ATMEGA16L heximal from a secured or locked chip has become an increasingly vital task—especially for purposes such as firmware recovery, legacy system maintenance, or program duplication. The ATMEGA16L, developed by Atmel (now part of Microchip Technology), is a high-performance, low-power 8-bit AVR microcontroller widely used in industrial control systems, smart instrumentation, automotive subsystems, and consumer electronics.

Features of the ATMEGA16L

The ATMEGA16L features:

• 16KB of in-system programmable Flash memory

• 1KB SRAM and 512 bytes of EEPROM

• 32 general-purpose I/O lines

• Powerful instruction set optimized for C-code execution

• Operating voltage as low as 2.7V, making it ideal for battery-powered applications

Its compact footprint, rich peripheral integration, and low power consumption have made it a preferred MCU for mass-produced industrial products, including energy meters, remote sensing devices, and programmable controllers.

When the binary or heximal code of a device based on the ATMEGA16L is lost, inaccessible, or needs to be migrated, engineers may need to clone, restore, or duplicate the original system’s firmware. Sometimes, product updates or competitive analysis also require reverse engineering the data stored in the flash or EEPROM memory of the chip.

However, this is easier said than done.

The ATMEGA16L implements security fuse bits that can lock or protect access to internal memory content. Once enabled, these bits disable SPI-based read instructions and block traditional programming interfaces. This means that any attempt to copy or dump the internal file must bypass these hardware defenses.

To extract microcontroller ATMEGA16L heximal from a protected chip, engineers must resort to advanced hardware-level attack methods, including:

• Decapsulation: Removing the chip’s casing to expose the silicon die for invasive probing

• Fault Injection: Using voltage spikes or clock glitches to temporarily disable the chip’s encryption or lockout

• Laser Attacks: Firing precise laser beams at specific memory control lines to gain access

• Side-channel analysis: Measuring power consumption or electromagnetic signals to decode instruction behavior during encryption routines

• Chip scanning & microprobing: Reading internal memory directly via nanoscopic needles and probing stations

These techniques fall under the umbrella of physical and semi-invasive chip attacks and are notoriously difficult. Success requires expensive lab equipment, advanced knowledge of microcontroller architecture, and meticulous execution.

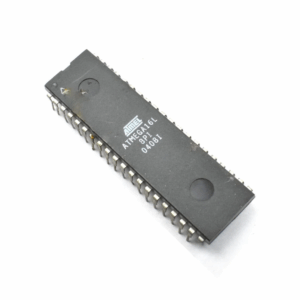

The ATMEGA16L is frequently deployed in long-life industrial products, and when a manufacturer discontinues support or a device becomes obsolete, having access to the original firmware, source code, or program archive is critical. Recovering, replicating, or duplicating the MCU contents via a dump process can extend the lifecycle of a device, aid in compliance testing, or support digital forensics.

Extract Microcontroller ATMEGA16L Heximal from its memory, the content will be readout in the format of heximal or binary, recover MCU file comes from both eeprom and flash of ATmega16L;

The device is manufactured using Atmel’s high density nonvolatile memory technology. The On-chip ISP Flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an On-chip Boot program running on the AVR core. The boot program can use any interface to download the application program in the Application Flash memory.

Software in the Boot Flash section will continue to run while the Application Flash section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel ATmega16 is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many embedded control applications if Extract MCU AT89LV51 Binary.

The ATmega16 AVR is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, in-circuit emulators, and evaluation kits.

Port A serves as the analog inputs to the A/D Converter. Port A also serves as an 8-bit bi-directional I/O port, if the A/D Converter is not used. Port pins can provide internal pull-up resistors (selected for each bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability after Extract mcu at89lv55 code.

When pins PA0 to PA7 are used as inputs and are externally pulled low, they will source current if the internal pull-up resistors are activated. The Port A pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated before Extract Microcontroller at89c1051 code.

The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running. Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port C output buffers have symmetrical drive characteristics with both high sink and source capability.

As inputs, Port C pins that are externally pulled low will source current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset condition becomes active, even if the clock is not running. If the JTAG interface is enabled, the pull-up resistors on pins PC5(TDI), PC3(TMS) and PC2(TCK) will be activated even if a reset occurs.

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

To extract microcontroller ATMEGA16L heximal from a locked, encrypted, or protected chip is an advanced endeavor combining expertise in microprocessor design, failure analysis, and reverse engineering. Whether the goal is to recover a lost program, hack a secured embedded system, or simply clone an industrial device for repair, this process is among the most intricate forms of modern embedded exploitation. It highlights the ongoing cat-and-mouse game between secure chip designers and those who seek to unlock their secrets.
