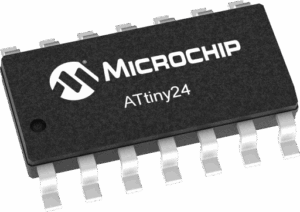

Extract IC ATtiny24 Code

Extract IC ATtiny24 Code and unlock microcontroller attiny24 security fuse bit then restore the embedded firmware from microprocessor attiny24;

Extract IC ATtiny24 Code and unlock microcontroller attiny24 security fuse bit then restore the embedded firmware from microprocessor attiny24;
Extract IC ATtiny24 Code and unlock microcontroller attiny24 security fuse bit then restore the embedded firmware from microprocessor attiny24;

Features

High Performance, Low Power AVR® 8-Bit Microcontroller

Advanced RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

Non-volatile Program and Data Memories

– 2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny24/44/84)

Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes In-System Programmable EEPROM (ATtiny24/44/84)

Endurance: 100,000 Write/Erase Cycles

– 128/256/512 Bytes Internal SRAM (ATtiny24/44/84)

– Programming Lock for Self-Programming Flash Program and EEPROM Data Security

Peripheral Features

– Two Timer/Counters, 8- and 16-bit counters with two PWM Channels on both

– 10-bit ADC

8 single-ended channels

12 differential ADC channel pairs with programmable gain (1x, 20x) Temperature Measurement

– Programmable Watchdog Timer with Separate On-chip Oscillator when extracting microcontroller attiny24v flash

– On-chip Analog Comparator

– Universal Serial Interface

Special Microcontroller Features

– debugWIRE On-chip Debug System

– In-System Programmable via SPI Port

– External and Internal Interrupt Sources

– Pin Change Interrupt on 12 pins

– Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes

– Enhanced Power-on Reset Circuit

– Programmable Brown-out Detection Circuit

– Internal Calibrated Oscillator

– On-chip Temperature Sensor I/O and Packages

– 14-pin SOIC, PDIP and 20-pin QFN/MLF: Twelve Programmable I/O Lines

Operating Voltage:

– 1.8 – 5.5V for ATtiny24V/44V/84V

– 2.7 – 5.5V for ATtiny24/44/84

Speed Grade

– ATtiny24V/44V/84V: 0 – 4 MHz @ 1.8 – 5.5V, 0 – 10 MHz @ 2.7 – 5.5V

– ATtiny24/44/84: 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V

Industrial Temperature Range

Low Power Consumption

Preliminary Summary

– Active Mode:

1 MHz, 1.8V: 380 µA

– Power-down Mode:

1.8V: 100 nA

The ATtiny24/44/84 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny24/44/84 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
